CorrSen Sensors

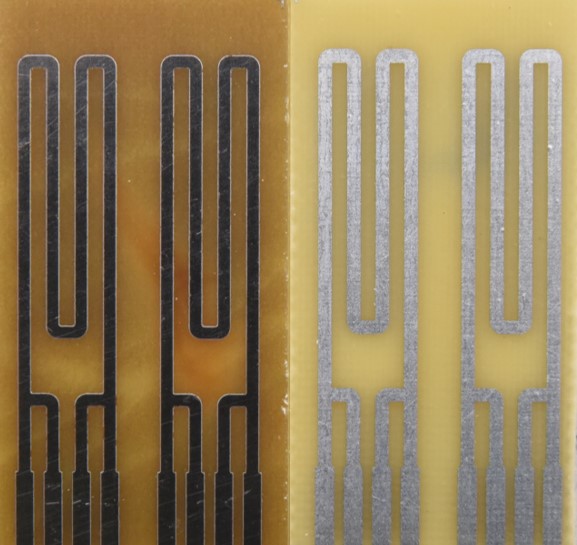

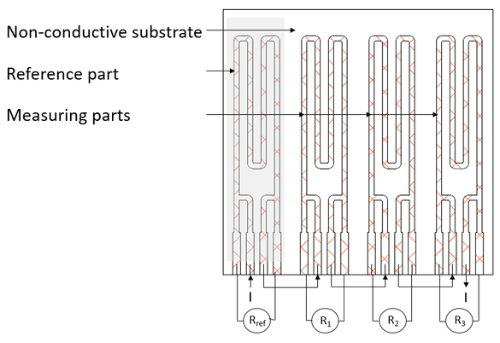

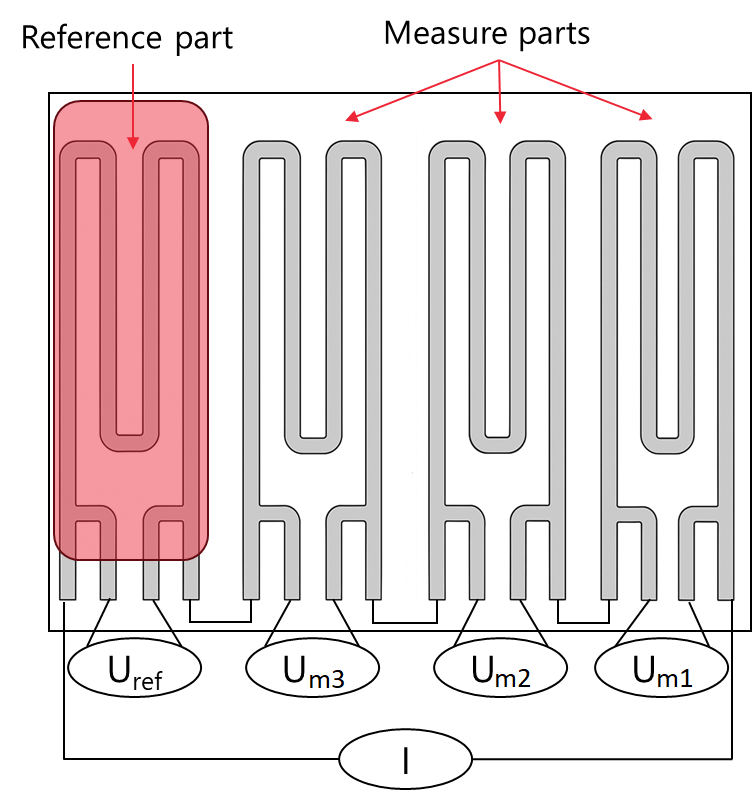

Sensors consist of four metal tracks with tightly controlled thickness applied on patent-protected thermally conductive but electrically insulating substrate. Three measuring tracks provide simultaneous information about corrosion loss allowing for statistical treatment and better precision of the measurement.

Three types of sensors are available:Three types of sensors are available:

1

Thin and highly sensitive sensors from 400 nm to 50 µm for less corrosive indoor environments (corrosivity IC1–IC5 according to ISO 11844-1 & C1–C2 according to ISO 9223).

2

Robust sensors from 12 to 250 µm for outdoor and harsh indoor environments (C2–CX according to ISO 9223).

3

Sensors on cable for hardly-approachable monitoring locations such as crevices.

1

Thin and highly sensitive sensors from 400 nm to 50 µm for less corrosive indoor environments (corrosivity IC1–IC5 according to ISO 11844-1 & C1–C2 according to ISO 9223).
2

Robust sensors from 12 to 250 µm for outdoor and harsh indoor environments (C2–CX according to ISO 9223).
3

Sensors on cable for hardly-approachable monitoring locations such as crevices.

How to choose sensor material?

If you want to assess the atmospheric corrosivity category according to ISO 9223 (outdoor; C1‒CX) or ISO 11844-1 (indoor; IC1‒IC5), choose the material specified in the standard.
If you want to monitor air corrosivity towards a specific material, choose a sensor with the composition similar to the material of your interest.

Thickness according to expected corrosivity

In less corrosive environments, you obtain the best sensitivity and reasonable longevity when using the lower corrosivity CorrSen sensors.
In harsh environments, the high corrosivity CorrSen sensors should be used.

Metal	Lower corrosivity	High corrosivity	Sensors on cable
Carbon steel	Fe-50	Fe-250	Fe-50/C, Fe-250/C
Zinc	Zn-50	Zn-250	Zn-50/C, Zn-250/C
Aluminum	Al-0.5	Al-20	Al-0.5/C, Al-20/C
Copper	Cu-0.5	Cu-12	Cu-0.5/C, Cu-12/C
Silver	Ag-0.5	–	Ag-0.5/C
Lead	Pb-0.4	Pb-25	Pb-0.4/C, Pb-25/C
Stainless steel	–	SS-25	SS-25/C

Sensors made of other materials as well as flexible, pretreated, pre-corroded and multi-material sensors for special use can be manufactured on request.

Compact version vs. sensors on a cable

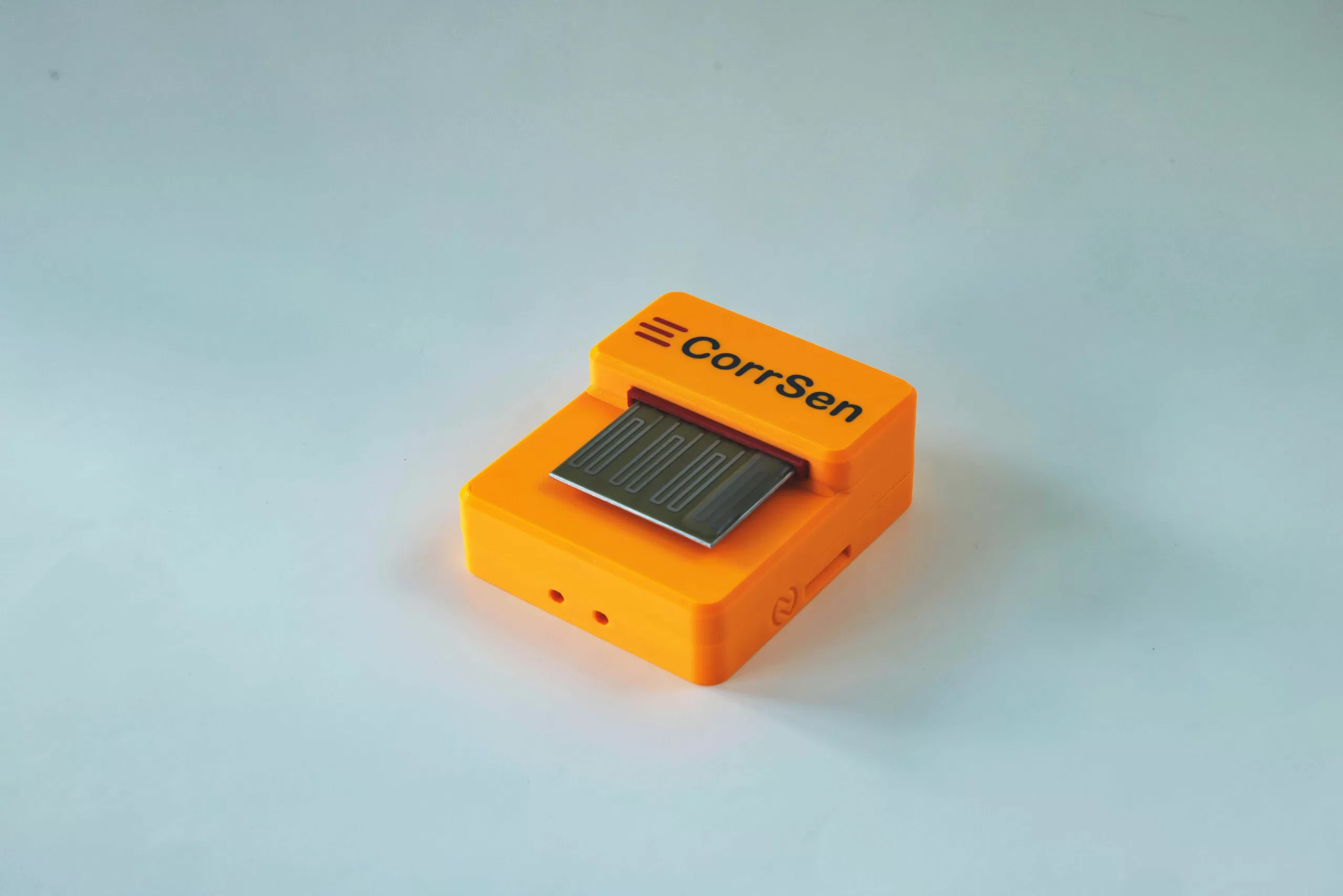

Is the monitoring site easily accessible and large enough to place there the whole logger? If yes, choose the basic sensor modification with a sensor inserted to the logger.

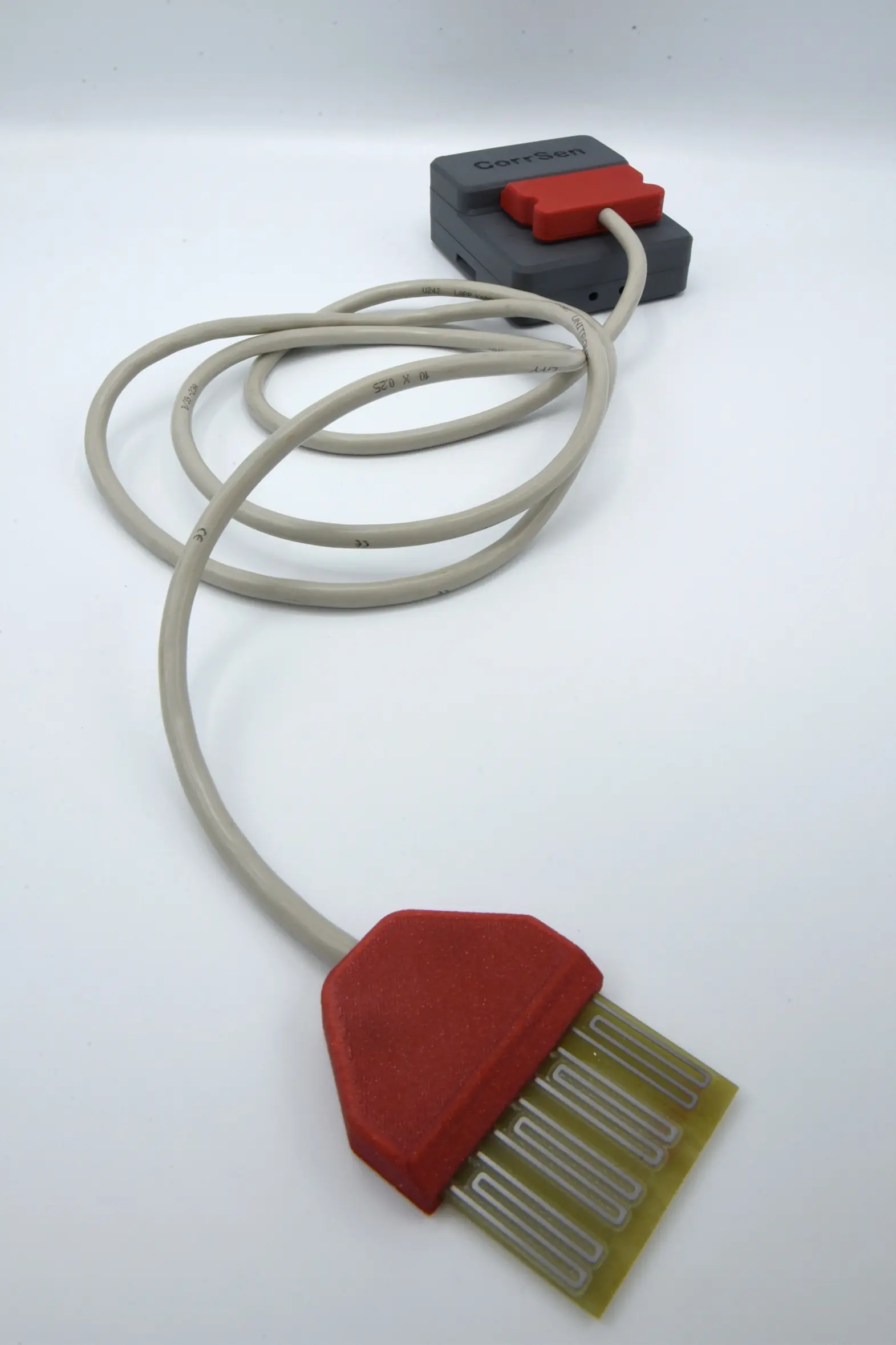

If not, choose the sensor soldered on a 2-meter long cable. Note that the temperature and relative humidity measurement is not possible for this modification.

How to choose sensor material?

If you want to assess the atmospheric corrosivity category according to ISO 9223 (outdoor; C1‒CX) or ISO 11844-1 (indoor; IC1‒IC5), choose the material specified in the standard.
If you want to monitor air corrosivity towards a specific material, choose a sensor with the composition similar to the material of your interest.

Thickness according to expected corrosivity

In less corrosive environments, you obtain the best sensitivity and reasonable longevity when using the lower corrosivity CorrSen sensors.
In harsh environments, the high corrosivity CorrSen sensors should be used.

Metal	Lower corrosivity	High corrosivity	Sensors on cable
Carbon steel	Fe-50	Fe-250	Fe-50/C, Fe-250/C
Zinc	Zn-50	Zn-250	Zn-50/C, Zn-250/C
Aluminum	Al-0.5	Al-20	Al-0.5/C, Al-20/C
Copper	Cu-0.5	Cu-12	Cu-0.5/C, Cu-12/C
Silver	Ag-0.5	–	Ag-0.5/C
Lead	Pb-0.4	Pb-25	Pb-0.4/C, Pb-25/C
Stainless steel	–	SS-25	SS-25/C

Sensors made of other materials as well as flexible, pretreated, pre-corroded and multi-material sensors for special use can be manufactured on request.

Compact version vs. sensors on a cable

Is the monitoring site easily accessible and large enough to place there the whole logger? If yes, choose the basic sensor modification with a sensor inserted to the logger.
If not, choose the sensor soldered on a 2-meter long cable. Note that the temperature and relative humidity measurement is not possible for this modification.
